Process-reliable and innovative casting system for series production

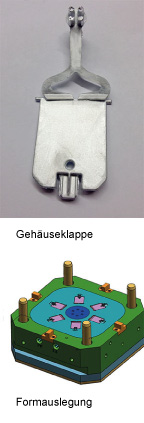

Is it possible to reduce cycle times by almost half, save 66% of recycled material and incidentally improve quality along the way? In brief: yes – it is. POWER-CAST Ortmann has demonstrated that it can be done with a casing lid that was die cast in zinc using FGS technology.

The abbreviation FGS stands for Frech Gating System. Which is the name of a process which does not require conventional distributors to be filled and cooled before the moulds are opened. The casing-lid project saw cycle times for each component being cut from 1.6 to 0.9 seconds. The reduction achieved with recycling material was even greater: 66%. Which meant that energy efficiencies have also been increased. The resulting CO2 savings totalled 35,344 kilograms a year – that's equal to driving a mid-range luxury car for 297,000 kilometres.

The FGS' potential was recognised at an early stage by the people responsible at POWER-CAST Ortmann and consequently realised within a development partnership with Frech that accompanied the system to readiness for reliable series production.

The Frech Gating System's suitability for cast objects depends on several factors. Our team in Velbert would be happy to help you assess whether your product is suitable.
